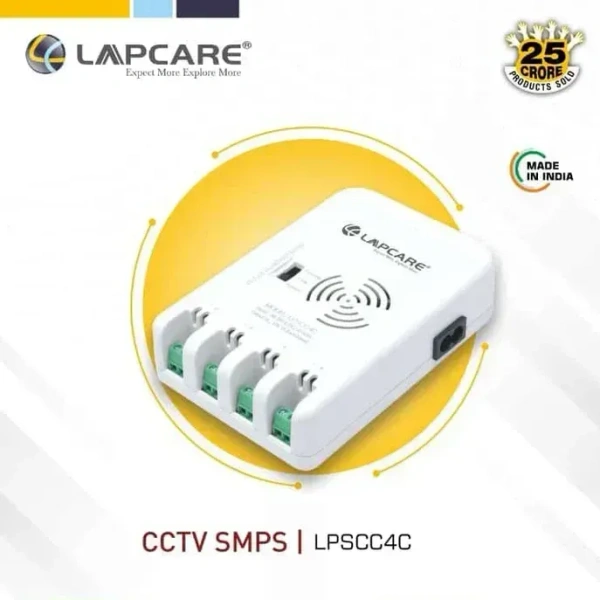

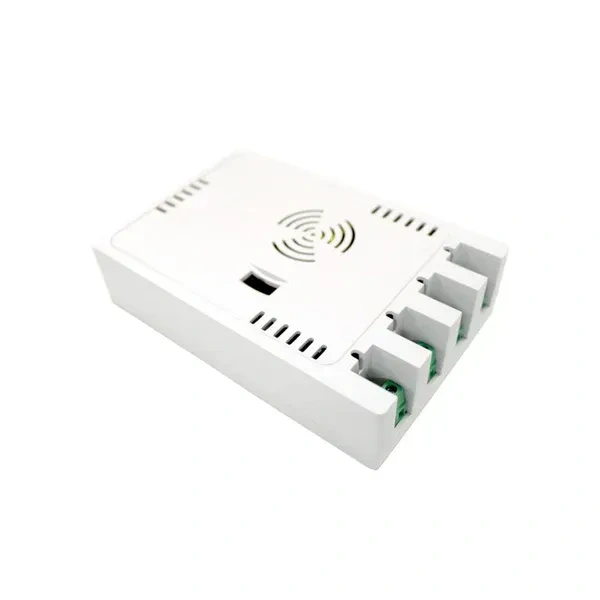

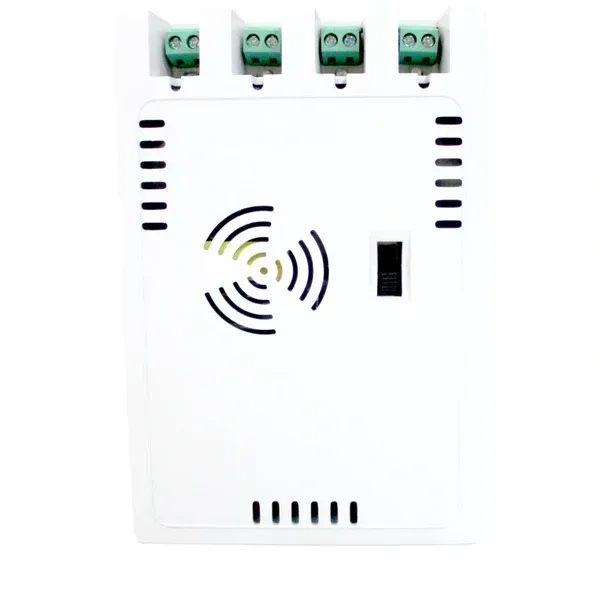

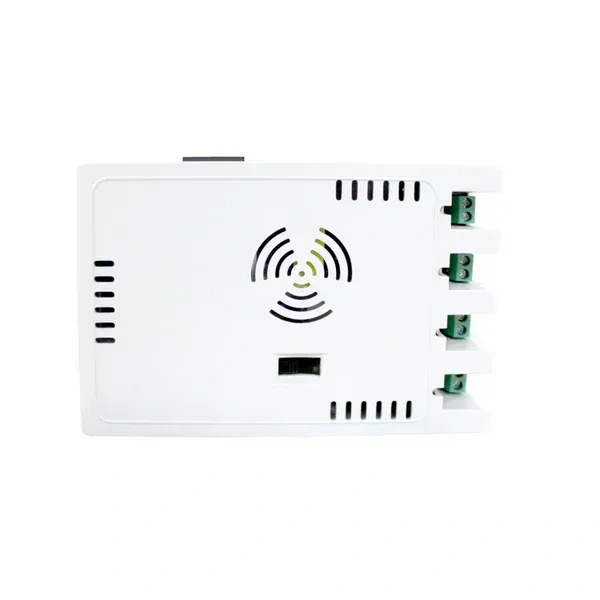

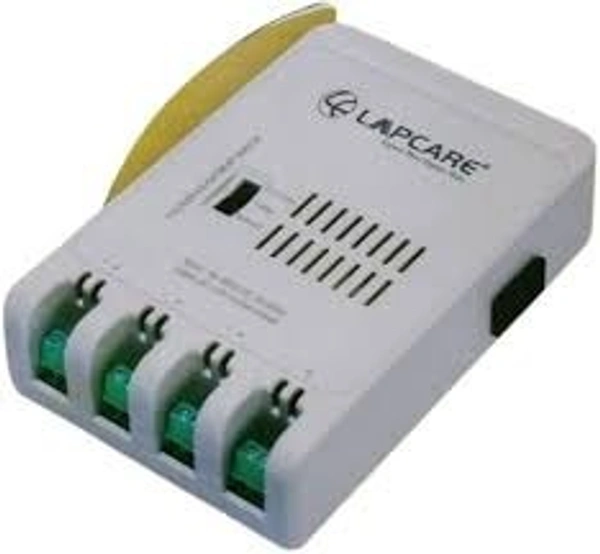

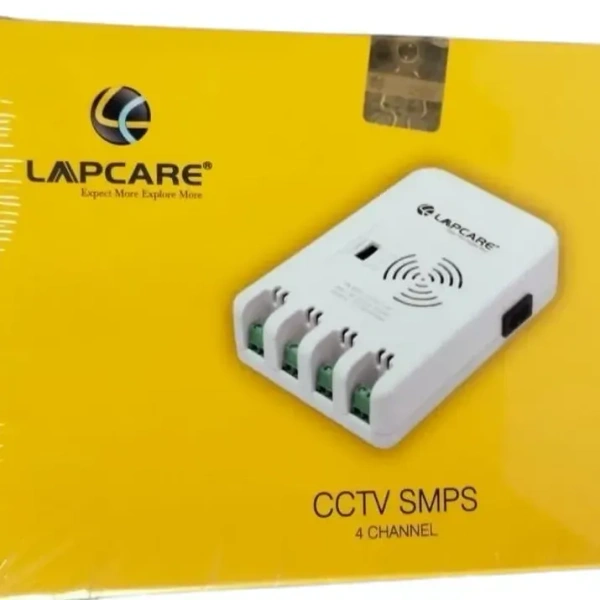

LAPCARE CCTV SMPS 4 Channel Multiport (LCC-303) Power Supply Adapter for up to 4 CCTV Cameras 12v SMPS with Multi Port for CCTV Security Bullet & Dome Camera Indoor or Outdoor Security Surveillance Cameras

HIGHLIGHTS

• Brand: Lapcare
• Colour: White
• Item Weight: 250Grams
• Item dimensions L x W x H: 14 x 10.5 x 3 Centimeters

IN THE BOX

• 1 PC Power Supply Adapter

WARRANTY

1 Year Warranty From Lapcare

EASY PAYMENT OPTIONS

• FREE Delivery
• Cash on Delivery
• Net Banking & Credit/Debit/ATM Card

TECHNICAL DETAILS

• ASIN: B074FZ9F3R
• Date First Available: 31 July 2017
• Generic Name: Lapcare CCTV SMPS 4 Channel Power Supply
• Input Voltage: AC 150-275V
• Input Frequency: 50Hz
• Input Current: 200 MA @230V
• Output Voltage: DC12V-DC15V
• Output Current: 1AMP Max. (Per ch.)
• Load Efficiency: >85%@230V AC
• line & Load Regulation: 1%
• Dimension: 114X138X36mm
• Input Card: 2 Pin
• Weigh: 250 gms

ADDITIONAL INFORMATION

• Auto Restart Limits Power Delivery to 3% During Overload Faults
• Output Short-Circuit Protection (SCP)
• Output Overload/ Over-Current Protection
• Optional Extended Shutdown Delay Time
• auto Restart or Latching
• line Brown-in / Out Protection
• Accurate Thermal Shutdown (OTP) hysteretic or Latching

SPECIFICATIONS

• 75% efficiency With 1w input at 230 VAC
• 50% efficiency with 0.1 W input at 230 VAC
• Compensation Over Line Limits Overload Power
• Fully integrated Soft-Start For Minimum Start-UP Stress
• Multi-Mode Control Maximizes Efficiency Over Full Load Range
• No-Load Consumpation Below 30 mW at 230 VAC
